10. 贪吃蛇版本迭代（V10）
- 张大为
- 辽宁师范大学计算机与信息技术学院@大连
- https://daweizh.github.io/h5/ QQ:1243605845
10.1 需求说明
- 增加减速功能键a
- 增加加速功能键d
- 增加对准功能键w；放开蛇行缠绕的判断，使蛇头可以穿越自己
- 增加游戏说明布局

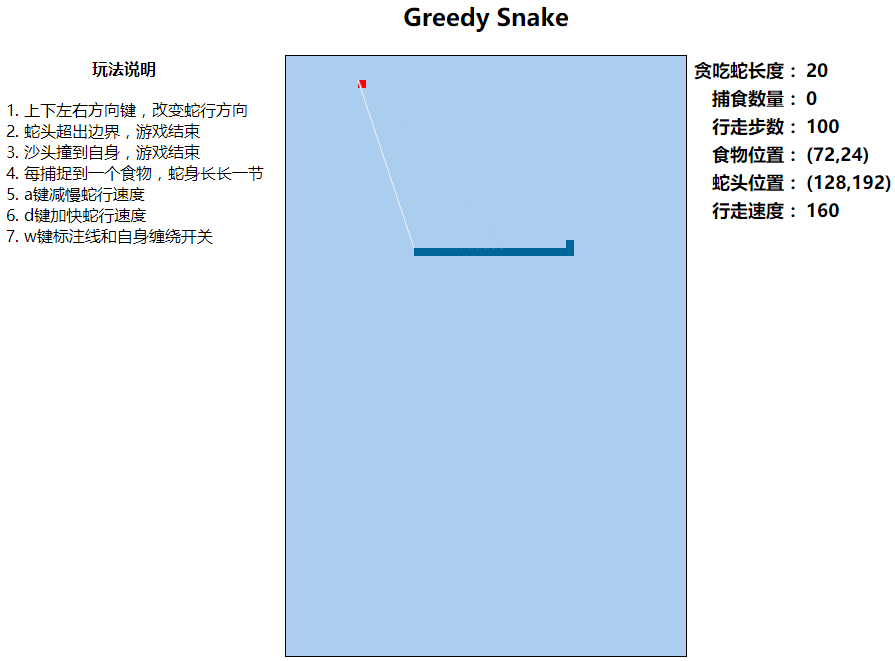

10.2 效果设计
10.3 编程过程
- 增加游戏说明布局
<td valign="top" align="left" width="300px"> <table> <tr><th>玩法说明</th></tr> <tr><td> <ol> <li>上下左右方向键，改变蛇行方向</li> <li>蛇头超出边界，游戏结束</li> <li>沙头撞到自身，游戏结束</li> <li>每捕捉到一个食物，蛇身长长一节</li> <li>a键减慢蛇行速度</li> <li>d键加快蛇行速度</li> <li>w键标注线和自身缠绕开关</li> </ol> </td></tr> </table> </td> - 修改游戏状态信息栏宽度
<td valign="top" align="left" width="300px"> - 设置游戏
power变量var oldX = oldY = snakeUnitSize; var power = 0; var heartbeat; var snakeSpeed; - 增加速度显示栏，在
window.onload中增加snakeSpeed = document.getElementById("snakeSpeed");修改
window.setInterval(snakeMove, speed);为
heartbeat = window.setInterval(snakeMove, speed);在
dispMessage方法中增加snakeSpeed.innerHTML = speed; - 在
document.onkeydown事件中增加a键减速功能case 28: //a speed = speed + 10; window.clearInterval(heartbeat); heartbeat=window.setInterval(snakeMove, speed); break; - 在
document.onkeydown事件中增加d键加速功能case 31: //d speed = speed - 10; if (speed<50) speed = 50; window.clearInterval(heartbeat); heartbeat=window.setInterval(snakeMove, speed); break; - 在
document.onkeydown事件中增加w键校准开关case 50: //w if(power==0) power = 1; else power = 0; break; - 在
snakeMove方法中记录蛇头刚刚走过的位置oldX = x; //v10 oldY = y; //v10增加蛇头穿越自身能力
if(power==0){ for(var i=0; i<pathMap.length; i++){ //v7 if( parseInt(pathMap[i].x)==x && parseInt(pathMap[i].y)==y){ //v7 alert("你挂了，继续努力吧！失败原因：撞到自己了....."); //v7 window.location.reload(); //v7 } } }增加超级校准线能力
if(power==1) showPower(); - 增加超级能力“校准线”功能
function showPower(){ game.lineWidth = 2; game.strokeStyle = "#abcdef"; game.beginPath(); game.moveTo(oldX,oldY); game.lineTo(foodX * snakeUnitSize,foodY * snakeUnitSize); game.stroke(); game.strokeStyle = "#f0f0f0"; game.lineWidth = 1; game.beginPath(); game.moveTo(x,y); game.lineTo(foodX * snakeUnitSize,foodY * snakeUnitSize); game.stroke(); }
10.4 代码注解
<script type="text/javascript">
... ...
//蛇行速度消息栏对象
var snakeSpeed; //v10
//为绘制校准标注线，保存蛇头刚移动过的位置坐标
var oldX = oldY = snakeUnitSize; //v10
//超级功能“校准线”开关
var power = 0; //v10
//保存定时器对象
var heartbeat; //v10
window.onload = function(){ //v1
... ...
//获取蛇行速度信息栏对象
snakeSpeed = document.getElementById("snakeSpeed"); //v10
... ...
//保存定时器对象
heartbeat = window.setInterval(snakeMove, speed); //v3，v10
}
document.onkeydown = function(e) { //v5
var code = e.keyCode - 37; //v5
//alert(code);
switch(code){ //v5
... ...
case 28: //a //v10
//每按一次a键速度减慢10毫秒
speed = speed + 10; //v10
//清除前一个定时器
window.clearInterval(heartbeat); //v10
//用新速度设定新定时器
heartbeat=window.setInterval(snakeMove, speed); //v10
break;
case 31: //d //v10
//每按一次d键速度加快10毫秒
speed = speed - 10; //v10
//设置最快速度的最短时间间隔
if (speed<50) speed = 50; //v10
//清除前一个定时器
window.clearInterval(heartbeat); //v10
//用新速度设置新定时器
heartbeat=window.setInterval(snakeMove, speed); //v10
break;
case 50: //w
//如果超级校准功能未开
if(power==0) //v10
//打开超级校准功能
power = 1; //v10
else
//关闭超级校准功能
power = 0; //v10
break;
}
}
function snakeMove(){ //v3
oldX = x;
oldY = y;
... ...
if(power==0){
for(var i=0; i<pathMap.length; i++){ //v7
if( parseInt(pathMap[i].x)==x && parseInt(pathMap[i].y)==y){ //v7
alert("你挂了，继续努力吧！失败原因：撞到自己了....."); //v7
window.location.reload(); //v7
}
}
}
... ...
//如果超级校准功能已经打开
if(power==1) //v10
//显示超级校准功能
showPower(); //v10
... ...
}
... ...
function dispMessage(){ //v9
... ...
//刷新蛇行速度状态信息
snakeSpeed.innerHTML = speed; //v10
}
/*
* 绘制超级功能“校准线”
*/
function showPower(){ //v10
//设置擦除线宽为2
game.lineWidth = 2; //v10
//设置擦除线颜色为背景颜色
game.strokeStyle = "#abcdef"; //v10
//开始绘制线条
game.beginPath(); //v10
//移动坐标到蛇头刚走过的位置
game.moveTo(oldX,oldY); //v10
//清除到食物的旧线
game.lineTo(foodX * snakeUnitSize,foodY * snakeUnitSize); //v10
//清除绘制完成
game.stroke(); //v10
//设置超级校准线的颜色为浅灰色
game.strokeStyle = "#f0f0f0"; //v10
//设计线宽为1
game.lineWidth = 1; //v10
//开始绘制超级校准线
game.beginPath(); //v10
//设置线段起始坐标为蛇头新到位置
game.moveTo(x,y); //v10
//绘制到食物的线段
game.lineTo(foodX * snakeUnitSize,foodY * snakeUnitSize); //v10
//绘制完成
game.stroke(); //v10
}
</script>
... ...
<center>
<h2>Greedy Snake</h2>
<table>
<tr>
<!-- v10 增加游戏玩法说明栏 -->
<td valign="top" align="left" width="300px">
<table>
<tr><th>玩法说明</th></tr>
<tr><td>
<ol>
<li>上下左右方向键，改变蛇行方向</li>
<li>蛇头超出边界，游戏结束</li>
<li>沙头撞到自身，游戏结束</li>
<li>每捕捉到一个食物，蛇身长长一节</li>
<li>a键减慢蛇行速度</li>
<li>d键加快蛇行速度</li>
<li>w键标注线和自身缠绕开关</li>
</ol>
</td></tr>
</table>
</td>
<td width="400px">
...
</td>
<td valign="top" align="left" width="300px">
... ...
</td>
</tr>
</table>
</center>
10.5 核心代码
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>Greedy Snake</title>
<style type="text/css">
canvas { /*v1*/
background:#abcdef;
border:1px solid #000000;
}
.show{ /*v10*/
font-family: "微软雅黑";
font-size: large;
font-weight: bold;
}
</style>
<script type="text/javascript">
var field; //v1
var game; //v1
var fieldWidth; //v2
var fieldHeight; //v2
var speed = 160; //v2
var foodX = foodY = 0; //v2
var snakeUnitSize = 8; //v2
var x = y = snakeUnitSize; //v3
var direction = 3; //v4
var snakeLength = 20; //v6
var pathMap = []; //v6
var foodNumber = -1; //v9
var walkSteps = 0; //v9
var foods; //v9
var snakes; //v9
var foodPlace; //v9
var snakePlace; //v9
var steps; //v9
var snakeSpeed; //v10
var oldX = oldY = snakeUnitSize; //v10
var power = 0; //v10
var heartbeat; //v10
window.onload = function(){ //v1
foods = document.getElementById("foods"); //v9
snakes = document.getElementById("snakes"); //v9
steps = document.getElementById("steps"); //v9
foodPlace = document.getElementById("foodPlace"); //v9
snakePlace = document.getElementById("snakePlace"); //v9
snakeSpeed = document.getElementById("snakeSpeed"); //v10
field = document.getElementById("field"); //v1
game = field.getContext("2d"); //v1
fieldWidth = field.width; //v2
fieldHeight = field.height; //v2
putFood(); //v8
heartbeat = window.setInterval(snakeMove, speed); //v3，v10
}
document.onkeydown = function(e) { //v5
var code = e.keyCode - 37; //v5
//alert(code);
switch(code){ //v5
case 0 : //按向左键
direction = 0;
break;
case 1 : //按向上键
direction = 1;
break;
case 2 : //按向右键
direction = 2;
break;
case 3 : //按向下键
direction = 3;
break;
case 28: // //v10a
speed = speed + 10; //v10
window.clearInterval(heartbeat); //v10
heartbeat=window.setInterval(snakeMove, speed); //v10
break;
case 31: //d //v10
speed = speed - 10; //v10
if (speed<50) speed = 50; //v10
window.clearInterval(heartbeat); //v10
heartbeat=window.setInterval(snakeMove, speed); //v10
break;
case 50: //w //v10
if(power==0) //v10
power = 1; //v10
else
power = 0; //v10
break;
}
}
function snakeMove(){ //v3
oldX = x; //v10
oldY = y; //v10
switch(direction){ //v4
case 0: //向左走
x = x - snakeUnitSize;
break;
case 1: //向上走
y = y - snakeUnitSize;
break;
case 2: //向右走
x = x + snakeUnitSize;
break;
case 3: //向下走
y = y + snakeUnitSize;
break;
}
if(x>fieldWidth || y>fieldHeight || x<0 || y<0){ //v4
alert("你挂了，继续努力吧!失败原因：碰壁了....."); //v4
window.location.reload(); //v4
}
if(power==0){ //v10
for(var i=0; i<pathMap.length; i++){ //v7
if( parseInt(pathMap[i].x)==x && parseInt(pathMap[i].y)==y){ //v7
alert("你挂了，继续努力吧！失败原因：撞到自己了....."); //v7
window.location.reload(); //v7
}
}
}
if (pathMap.length>snakeLength) { //v6
var snakeTail = pathMap.shift(); //v6
game.clearRect(snakeTail['x'], snakeTail['y'], snakeUnitSize, snakeUnitSize); //v6
}
pathMap.push({'x':x,'y':y}); //v6
game.fillStyle = "#006699"; //v3
game.strokeStyle = "#006699"; //v3
game.fillRect(x, y, snakeUnitSize, snakeUnitSize); //v3
if((foodX*snakeUnitSize)==x && (foodY*snakeUnitSize)==y){ //v8
snakeLength++; //v8
putFood(); //v8
}
game.fillStyle = "#ff0000"; //v2
game.strokeStyle = "#000000"; //v2
game.fillRect(foodX*snakeUnitSize, foodY*snakeUnitSize, snakeUnitSize, snakeUnitSize); //v2
if(power==1) //v10
showPower(); //v10
walkSteps = walkSteps + 1; //v9
dispMessage(); //v9
}
function putFood(){ //v2
var size = snakeUnitSize; //v2
game.fillStyle = "#ff0000"; //v2
game.strokeStyle = "#000000"; //v2
foodX = Math.ceil(Math.random() * (fieldWidth/size)); //v2
if(foodX*size>fieldWidth-size) //v8
foodX = foodX - 1; //v8
foodY = Math.ceil(Math.random() * (fieldHeight/size)); //v2
if(foodY*size>fieldHeight-size) //v8
foodY = foodY - 1; //v8
game.fillRect(foodX*size, foodY*size, size, size); //v2
foodNumber = foodNumber + 1; //v9
walkSteps = 0; //v9
}
function dispMessage(){ //v9
foods.innerHTML = foodNumber; //v9
snakes.innerHTML = snakeLength; //v9
steps.innerHTML = walkSteps; //v9
foodPlace.innerHTML = "(" + foodX*snakeUnitSize + "," + foodY*snakeUnitSize + ")"; //v9
snakePlace.innerHTML = "(" + x + "," + y + ")"; //v9
snakeSpeed.innerHTML = speed; //v10
}
function showPower(){ //v10
game.lineWidth = 2; //v10
game.strokeStyle = "#abcdef"; //v10
game.beginPath(); //v10
game.moveTo(oldX,oldY); //v10
game.lineTo(foodX * snakeUnitSize,foodY * snakeUnitSize); //v10
game.stroke(); //v10
game.strokeStyle = "#f0f0f0"; //v10
game.lineWidth = 1; //v10
game.beginPath(); //v10
game.moveTo(x,y); //v10
game.lineTo(foodX * snakeUnitSize,foodY * snakeUnitSize); //v10
game.stroke(); //v10
}
</script>
</head>
<body>
<center>
<h2>Greedy Snake</h2>
<table>
<tr>
<td valign="top" align="left" width="300px">
<table>
<tr><th>玩法说明</th></tr>
<tr><td>
<ol>
<li>上下左右方向键，改变蛇行方向</li>
<li>蛇头超出边界，游戏结束</li>
<li>沙头撞到自身，游戏结束</li>
<li>每捕捉到一个食物，蛇身长长一节</li>
<li>a键减慢蛇行速度</li>
<li>d键加快蛇行速度</li>
<li>w键标注线和自身缠绕开关</li>
</ol>
</td></tr>
</table>
</td>
<td width="400px">
<canvas id="field" width="400" height="600">
This is the field that snake snaking.
</canvas>
</td>
<td valign="top" align="left" width="300px">
<table class="show">
<tr>
<td align="right" nowrap="nowrap">贪吃蛇长度：</td>
<td align="left" id="snakes">35</td>
</tr>
<tr>
<td align="right">捕食数量：</td>
<td align="left" id="foods">14</td>
</tr>
<tr>
<td align="right">行走步数：</td>
<td align="left" id="steps">1000</td>
</tr>
<tr>
<td align="right">食物位置：</td>
<td align="left" id="foodPlace">14</td>
</tr>
<tr>
<td align="right">蛇头位置：</td>
<td align="left" id="snakePlace">1000</td>
</tr>
<tr>
<td align="right">行走速度：</td>
<td align="left" id="snakeSpeed">1000</td>
</tr>
</table>
</td>
</tr>
</table>
</center>
</body>
</html>
