9. 贪吃蛇版本迭代（V9）
- 张大为
- 辽宁师范大学计算机与信息技术学院@大连
- https://daweizh.github.io/h5/ QQ:1243605845
9.1 需求说明
- 重构网页布局增加游戏状态显示
- 增加游戏状态记录变量
- 增加消息栏对象变量
- 增加游戏状态收集功能
- 增加游戏状态显示功能

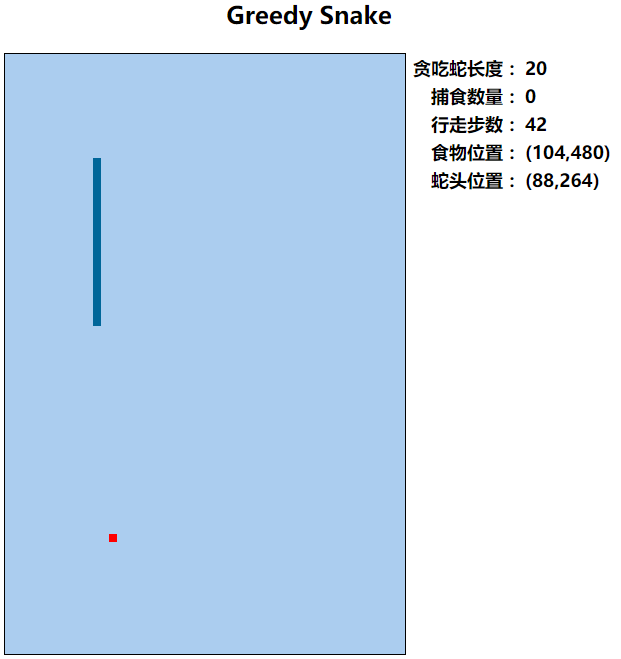

9.2 效果设计
9.3 编程过程
- 重构网页布局，将
<body>标记内容替换成如下内容<center> <h2>Greedy Snake</h2> <table> <tr> <td> <canvas id="field" width="400" height="600"> This is the field that snake snaking. </canvas> </td> <td valign="top" align="left"> <table class="show"> <tr> <td align="right">贪吃蛇长度：</td> <td align="left" id="snakes">35</td> </tr> <tr> <td align="right">捕食数量：</td> <td align="left" id="foods">14</td> </tr> <tr> <td align="right">行走步数：</td> <td align="left" id="steps">1000</td> </tr> <tr> <td align="right">食物位置：</td> <td align="left" id="foodPlace">14</td> </tr> <tr> <td align="right">蛇头位置：</td> <td align="left" id="snakePlace">1000</td> </tr> </table> </td> </tr> </table> </center> - 删除
div样式，增加.show样式.show{ font-family: "微软雅黑"; font-size: large; font-weight: bold; } - 增加游戏状态计数变量
var foodNumber = -1; var walkSteps = 0; - 增加游戏状态消息栏变量
var foods; var snakes; var foodPlace; var snakePlace; var steps; - 在
widnow.onload方法中获取状态栏对象foods = document.getElementById("foods"); snakes = document.getElementById("snakes"); steps = document.getElementById("steps"); foodPlace = document.getElementById("foodPlace"); snakePlace = document.getElementById("snakePlace"); - 在
snakeMove方法中搜集游戏状态信息，显示游戏状态walkSteps = walkSteps + 1; dispMessage(); - 在
putFood方法中搜集游戏状态信息foodNumber = foodNumber + 1; walkSteps = 0; - 增加游戏状态刷新方法
function dispMessage(){ foods.innerHTML = foodNumber; snakes.innerHTML = snakeLength; steps.innerHTML = walkSteps; foodPlace.innerHTML = "(" + foodX*snakeUnitSize + "," + foodY*snakeUnitSize + ")"; snakePlace.innerHTML = "(" + x + "," + y + ")"; }
9.4 代码注解
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>Greedy Snake</title>
<style type="text/css">
... ...
/*消息板样式*/
.show{ /*v9*/
font-family: "微软雅黑";
font-size: large;
font-weight: bold;
}
</style>
<script type="text/javascript">
... ...
//吃到食物的数量
var foodNumber = -1; //v9
//蛇走了多少步
var walkSteps = 0; //v9
//捕食数量消息栏
var foods; //v9
//蛇长消息栏
var snakes; //v9
//食物位置消息栏
var foodPlace; //v9
//蛇头位置消息栏
var snakePlace; //v9
//蛇行步数消息栏
var steps; //v9
window.onload = function(){ //v1
//获取捕食数量消息栏
foods = document.getElementById("foods"); //v9
//获取蛇长消息栏
snakes = document.getElementById("snakes"); //v9
//获取蛇行步数消息栏
steps = document.getElementById("steps"); //v9
//获取食物位置消息栏
foodPlace = document.getElementById("foodPlace"); //v9
//获取蛇头位置消息栏
snakePlace = document.getElementById("snakePlace"); //v9
... ...
}
... ...
function snakeMove(){ //v3
... ...
//蛇行步数加1
walkSteps = walkSteps + 1; //v9
//刷新消息板
dispMessage(); //v9
}
function putFood(){ //v2
... ...
//捕食数量计数
foodNumber = foodNumber + 1; //v9
//每次捕食后，蛇行步数重新计数
walkSteps = 0; //v9
}
/*
* 显示游戏状态信息
*/
function dispMessage(){ //v9
//显示捕食数量
foods.innerHTML = foodNumber; //v9
//显示蛇身长度
snakes.innerHTML = snakeLength; //v9
//显示蛇行步数
steps.innerHTML = walkSteps; //v9
//显示食物位置
foodPlace.innerHTML = "(" + foodX*snakeUnitSize + "," + foodY*snakeUnitSize + ")"; //v9
//显示蛇头位置
snakePlace.innerHTML = "(" + x + "," + y + ")"; //v9
}
</script>
</head>
<body>
<!-- v9 -->
<center>
<h2>Greedy Snake</h2>
<table>
<tr>
<td>
<canvas id="field" width="400" height="600">
This is the field that snake snaking.
</canvas>
</td>
<td valign="top" align="left">
<table class="show">
<tr>
<td align="right">贪吃蛇长度：</td>
<td align="left" id="snakes">35</td>
</tr>
<tr>
<td align="right">捕食数量：</td>
<td align="left" id="foods">14</td>
</tr>
<tr>
<td align="right">行走步数：</td>
<td align="left" id="steps">1000</td>
</tr>
<tr>
<td align="right">食物位置：</td>
<td align="left" id="foodPlace">14</td>
</tr>
<tr>
<td align="right">蛇头位置：</td>
<td align="left" id="snakePlace">1000</td>
</tr>
</table>
</td>
</tr>
</table>
</center>
</body>
</html>
9.5 核心代码
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>Greedy Snake</title>
<style type="text/css">
canvas { /*v1*/
background:#abcdef;
border:1px solid #000000;
}
.show{ /*v9*/
font-family: "微软雅黑";
font-size: large;
font-weight: bold;
}
</style>
<script type="text/javascript">
var field; //v1
var game; //v1
var fieldWidth; //v2
var fieldHeight; //v2
var speed = 160; //v2
var foodX = foodY = 0; //v2
var snakeUnitSize = 8; //v2
var x = y = snakeUnitSize; //v3
var direction = 3; //v4
var snakeLength = 20; //v6
var pathMap = []; //v6
var foodNumber = -1; //v9
var walkSteps = 0; //v9
var foods; //v9
var snakes; //v9
var foodPlace; //v9
var snakePlace; //v9
var steps; //v9
window.onload = function(){ //v1
foods = document.getElementById("foods"); //v9
snakes = document.getElementById("snakes"); //v9
steps = document.getElementById("steps"); //v9
foodPlace = document.getElementById("foodPlace"); //v9
snakePlace = document.getElementById("snakePlace"); //v9
field = document.getElementById("field"); //v1
game = field.getContext("2d"); //v1
fieldWidth = field.width; //v2
fieldHeight = field.height; //v2
putFood(); //v8
window.setInterval(snakeMove, speed); //v3
}
document.onkeydown = function(e) { //v5
var code = e.keyCode - 37; //v5
switch(code){ //v5
case 0 : //按向左键
direction = 0;
break;
case 1 : //按向上键
direction = 1;
break;
case 2 : //按向右键
direction = 2;
break;
case 3 : //按向下键
direction = 3;
break;
}
}
function snakeMove(){ //v3
switch(direction){ //v4
case 0: //向左走
x = x - snakeUnitSize;
break;
case 1: //向上走
y = y - snakeUnitSize;
break;
case 2: //向右走
x = x + snakeUnitSize;
break;
case 3: //向下走
y = y + snakeUnitSize;
break;
}
if(x>fieldWidth || y>fieldHeight || x<0 || y<0){ //v4
alert("你挂了，继续努力吧!失败原因：碰壁了....."); //v4
window.location.reload(); //v4
}
for(var i=0; i<pathMap.length; i++){ //v7
if( parseInt(pathMap[i].x)==x && parseInt(pathMap[i].y)==y){ //v7
alert("你挂了，继续努力吧！失败原因：撞到自己了....."); //v7
window.location.reload(); //v7
}
}
if (pathMap.length>snakeLength) { //v6
var snakeTail = pathMap.shift(); //v6
game.clearRect(snakeTail['x'], snakeTail['y'], snakeUnitSize, snakeUnitSize); //v6
}
pathMap.push({'x':x,'y':y}); //v6
game.fillStyle = "#006699"; //v3
game.strokeStyle = "#006699"; //v3
game.fillRect(x, y, snakeUnitSize, snakeUnitSize); //v3
if((foodX*snakeUnitSize)==x && (foodY*snakeUnitSize)==y){ //v8
snakeLength++; //v8
putFood(); //v8
}
walkSteps = walkSteps + 1; //v9
dispMessage(); //v9
}
function putFood(){ //v2
var size = snakeUnitSize; //v2
game.fillStyle = "#ff0000"; //v2
game.strokeStyle = "#000000"; //v2
foodX = Math.ceil(Math.random() * (fieldWidth/size)); //v2
if(foodX*size>fieldWidth-size) //v8
foodX = foodX - 1; //v8
foodY = Math.ceil(Math.random() * (fieldHeight/size)); //v2
if(foodY*size>fieldHeight-size) //v8
foodY = foodY - 1; //v8
game.fillRect(foodX*size, foodY*size, size, size); //v2
foodNumber = foodNumber + 1; //v9
walkSteps = 0; //v9
}
function dispMessage(){ //v9
foods.innerHTML = foodNumber; //v9
snakes.innerHTML = snakeLength; //v9
steps.innerHTML = walkSteps; //v9
foodPlace.innerHTML = "(" + foodX*snakeUnitSize + "," + foodY*snakeUnitSize + ")"; //v9
snakePlace.innerHTML = "(" + x + "," + y + ")"; //v9
}
</script>
</head>
<body>
<center> <!-- v9 -->
<h2>Greedy Snake</h2>
<table>
<tr>
<td>
<canvas id="field" width="400" height="600">
This is the field that snake snaking.
</canvas>
</td>
<td valign="top" align="left">
<table class="show">
<tr>
<td align="right">贪吃蛇长度：</td>
<td align="left" id="snakes">35</td>
</tr>
<tr>
<td align="right">捕食数量：</td>
<td align="left" id="foods">14</td>
</tr>
<tr>
<td align="right">行走步数：</td>
<td align="left" id="steps">1000</td>
</tr>
<tr>
<td align="right">食物位置：</td>
<td align="left" id="foodPlace">14</td>
</tr>
<tr>
<td align="right">蛇头位置：</td>
<td align="left" id="snakePlace">1000</td>
</tr>
</table>
</td>
</tr>
</table>
</center>
</body>
</html>
